Flexible QR access for modern buildings
Sensor Access QR readers provide fast, contactless credential reading in a compact single-gang format. Available as QR only or QR + MIFARE.
Key benefits
Fast reads. Reads QR codes from 0 to 20 cm in under 200 ms.
QR and card at one reader. The QRProx-MF version also reads the CSN of MIFARE Classic 13.56 MHz cards, so phones and staff cards work at the same door.
Standard Wiegand output. Wiegand 34-bit as standard, with Wiegand 26 or RS232/485 available by request.
Choose how it scans. Continuous mode for busy entrances, or single mode to prevent double scans at controlled doors.
Clear feedback. White backlight, green LED and internal buzzer.
Simple to fit. Fits a standard single gang back box, with optional surface and angled back boxes.
2-year warranty, like all our products.
QR readers offer a simple, flexible way to manage access for visitors, contractors and temporary users without having to issue physical cards or fobs. QR credentials can be generated and distributed remotely to a user’s smartphone, then updated or revoked when required, making them ideally suited for facilities that see a large number of temporary visitors.
Choose QRCode for QR-only applications or QRProx-MF where QR and 13.56 MHz MIFARE card reading are required.

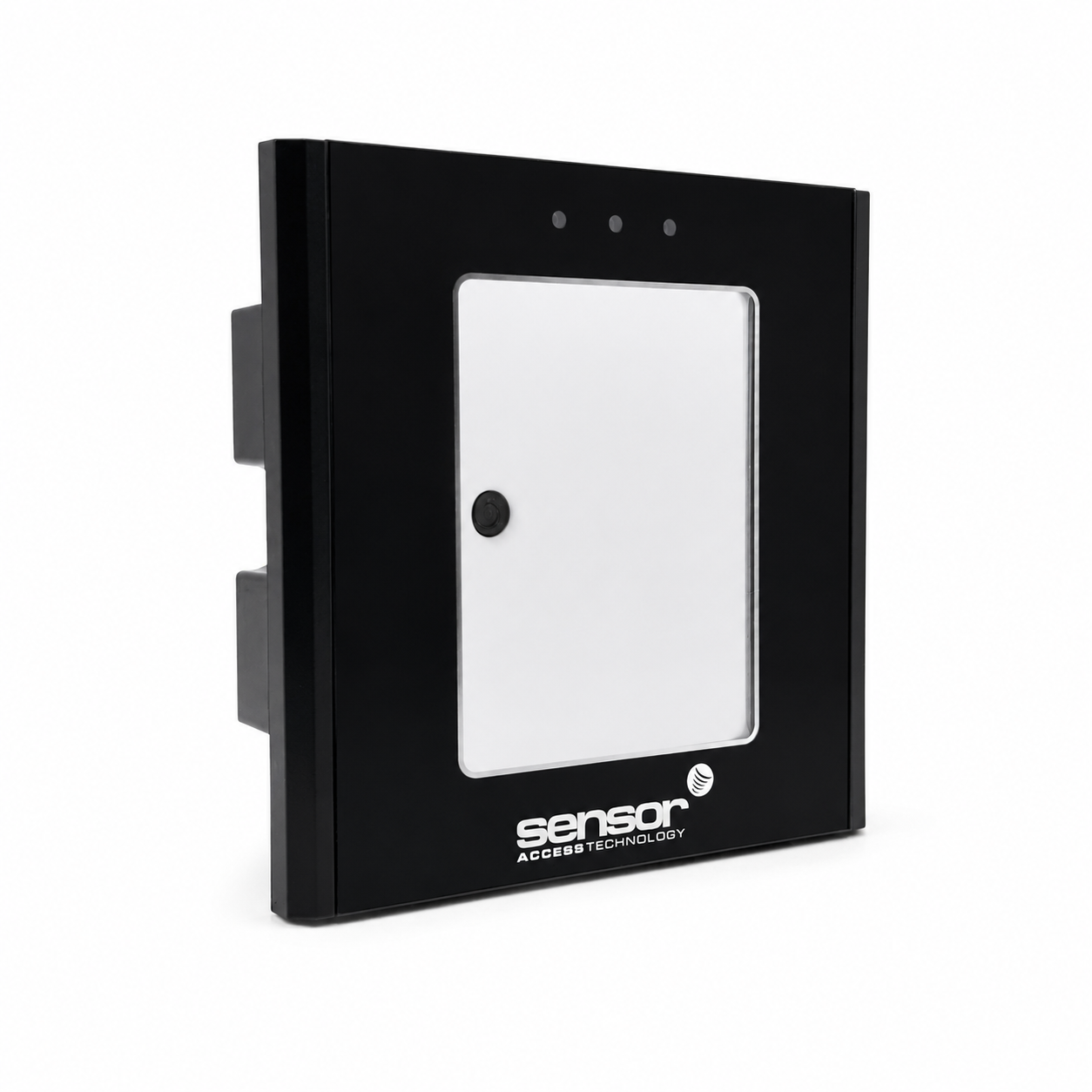

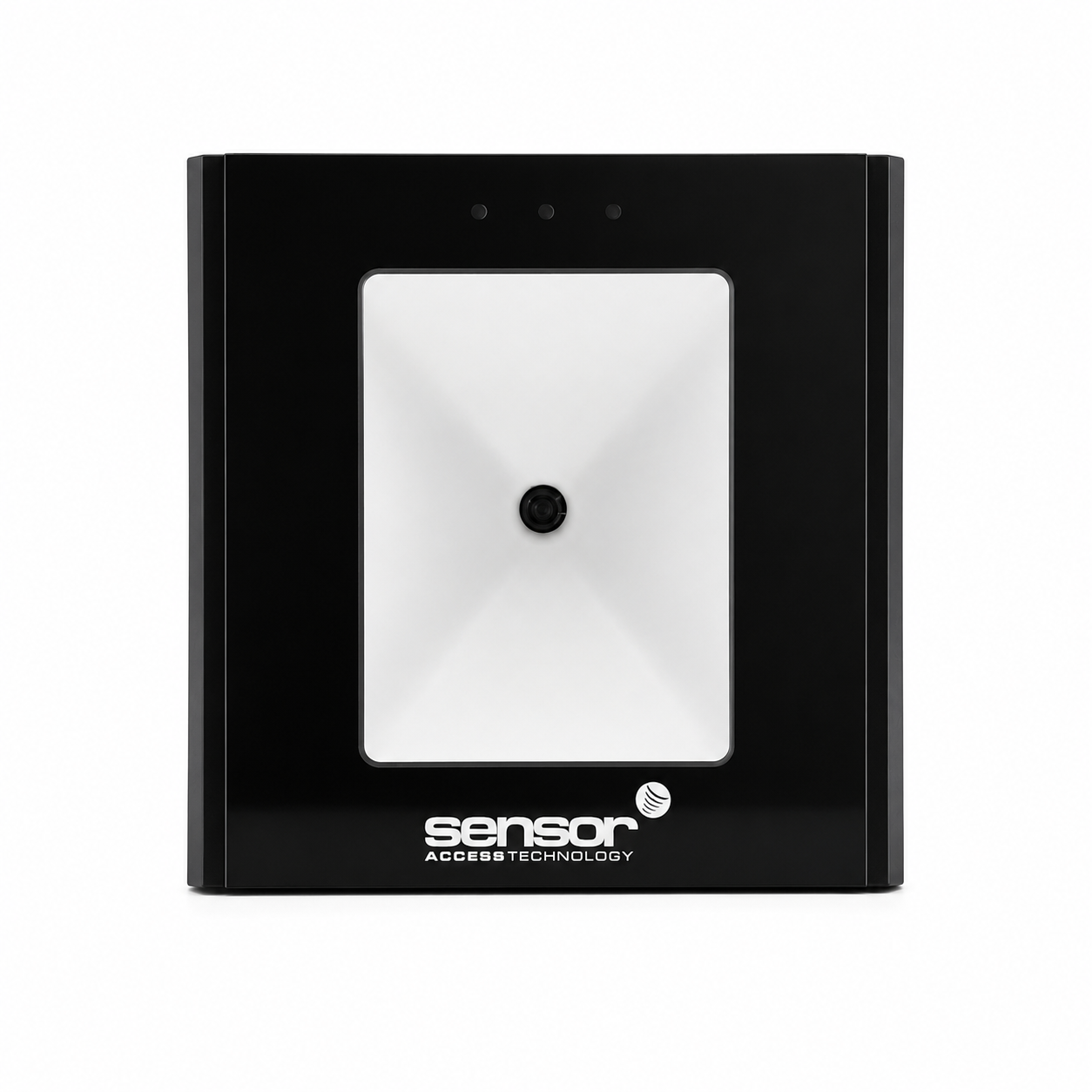

Flush mount QR and Mifare CSN reader. Slim Sleek design equipped with LED and buzzer for indication and Wiegand 34bit output. Wiegand 26bit output on request.

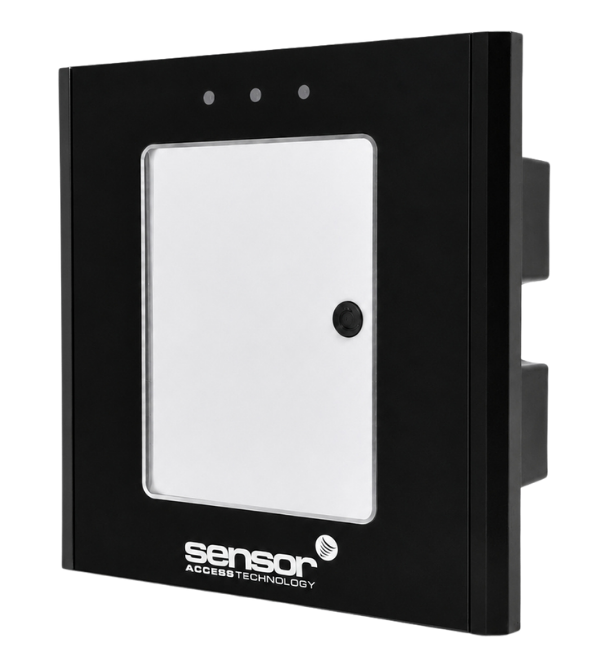

Flush mount QR code reader. Slim Sleek design equipped with LED and buzzer for indication.
Back box not included
QR Accessories

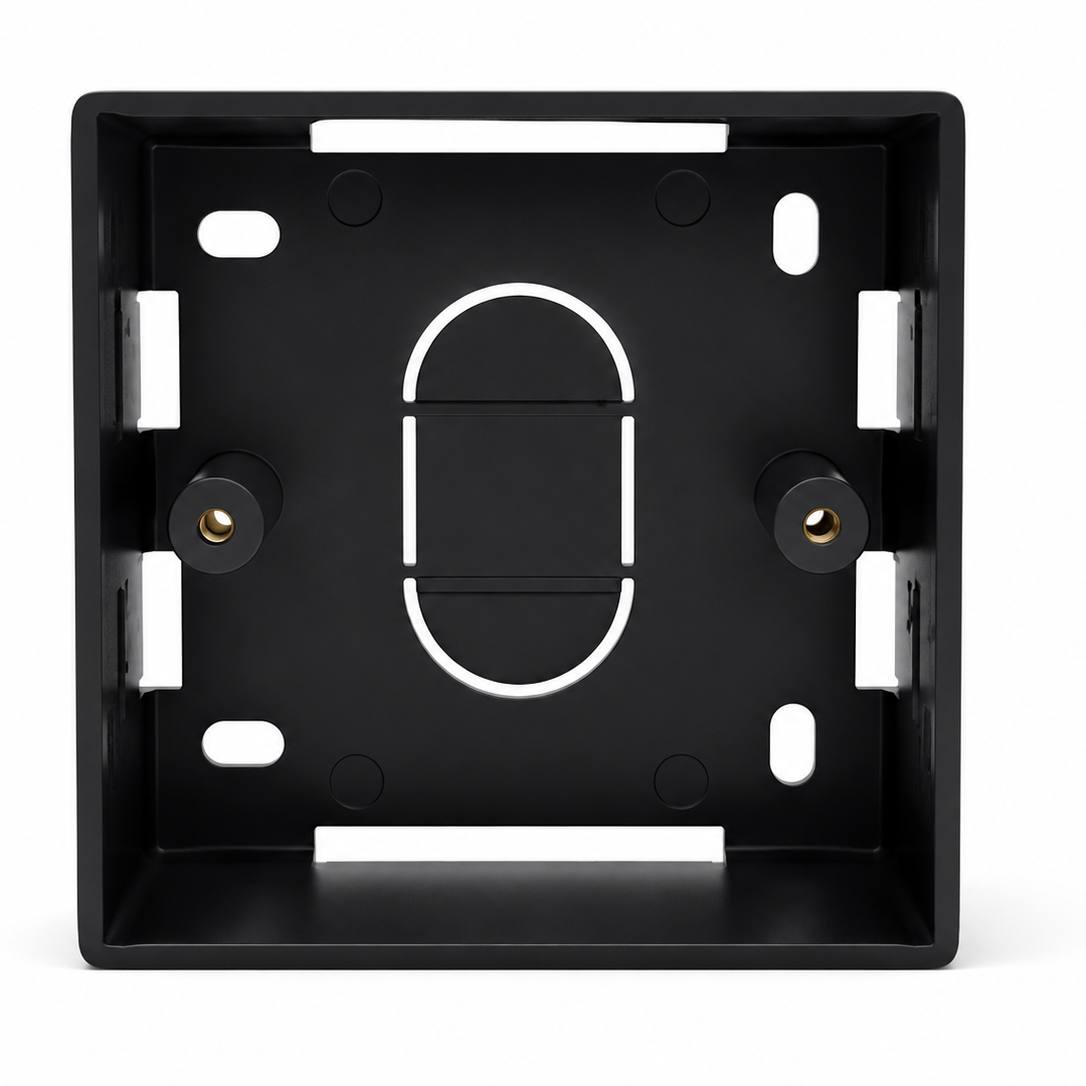

Item Details:
deeper than normal, these are 45mm deep externally, with 42mm of internal useable depth
single gang (approx 86mm x 86mm)
fit straight to the wall
made from strong flexible ABS material, so it won't crack if you overtighten it
*screws and fixings are not included, you have to provide your own

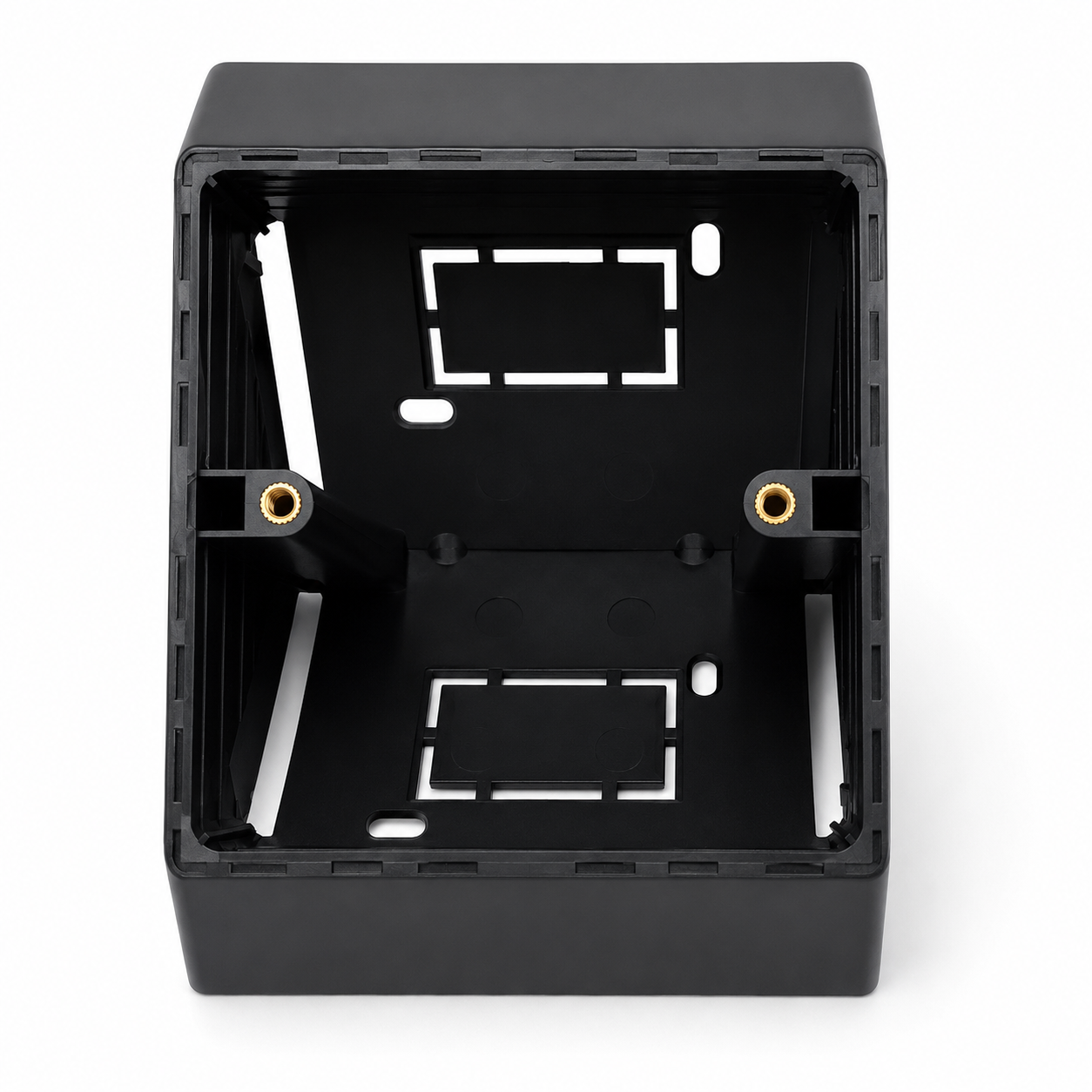

About this item:
45-Degree Angled Surface Mount: Ergonomically designed with a 45-degree angle for easier access to outlets or switches
Durable Construction: Built from high-quality materials to ensure a long-lasting and sturdy mount for your electrical installations.
Compact Size: Measuring 85mm x 85mm
Use Cases
Visitor Management
With Sensor VMS, visitors receive a QR code pass by email and present it on their phone at the reader. No card to issue or collect.
Contractors
Give contractors a QR code assigned to them as a cardholder in GuardPoint10, with only the access permissions they need.
Events
Continuous scanning mode keeps queues moving at high-traffic doors.
Office meeting rooms
Let staff and guests into meeting rooms with a QR code on their phone, with access limited to the rooms and times set in your access control system.

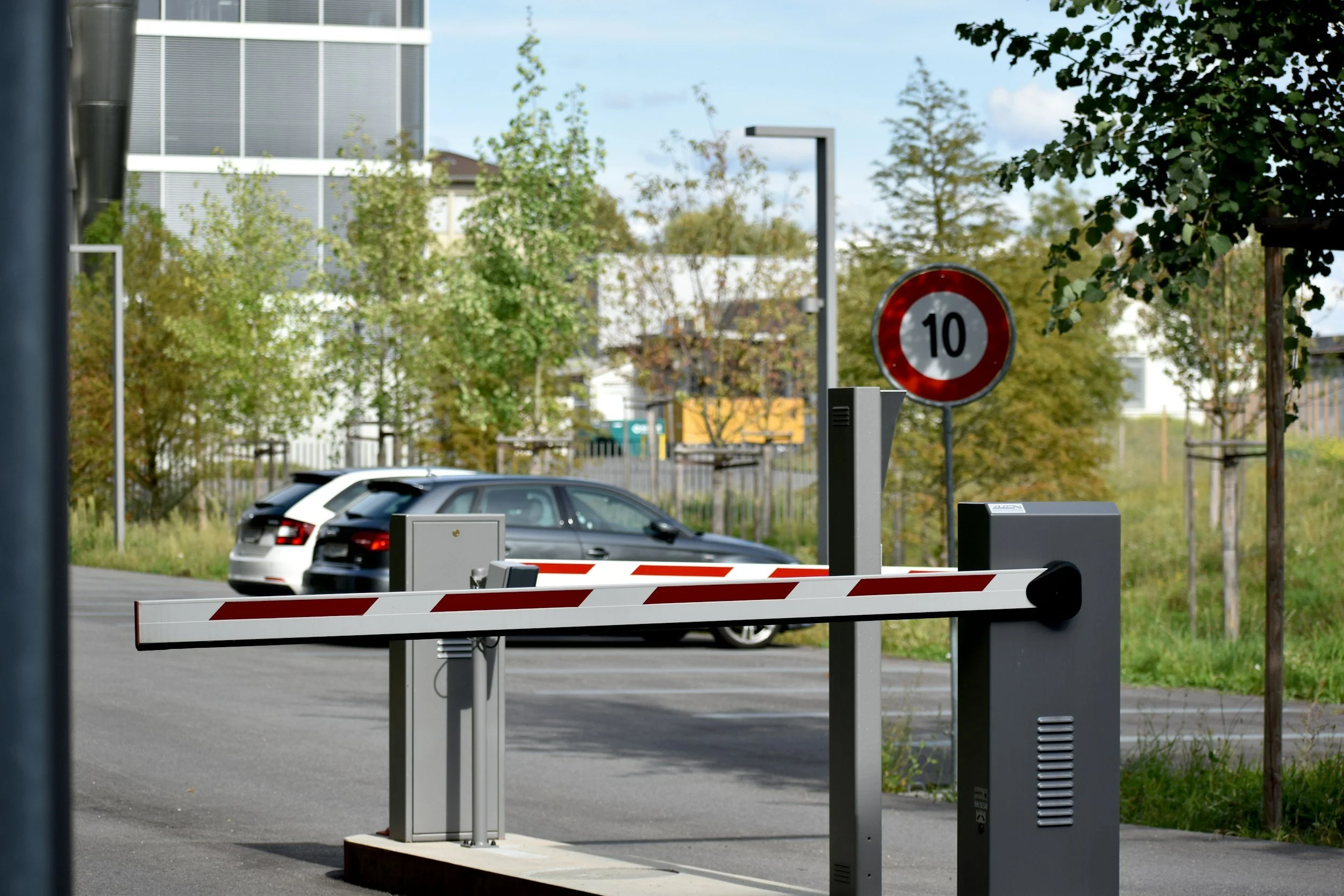

Parking Barriers
Continuous mode suits high-traffic doors and parking barriers, where speed matters most.
Attendance and Anti-passback
Single scan mode suits controlled doors and accurate event logging.
FAQ
Can the reader be used outdoors?
1
Yes, our QR Readers are compatible with most Access Control Systems including Paxton Net2, Gallagher, Genetec and more
Does it work with systems other than GuardPoint10?
2
Wiegand 34-bit is standard. Wiegand 26 or RS232/485 can be ordered. The packaging shows which version you have.
Which output formats does the reader support?
3
Do you offer trade discounts for large orders?
4
Yes, we offer trade discounts for Access Control Installers. Got a project coming up that requires QR Readers? Get in touch and our sales team can help you spec it and get a price together.
Can it read staff cards too?
5
The QRProx-MF version reads the CSN of MIFARE Classic 13.56 MHz cards as well as QR codes.
6
How is it mounted?

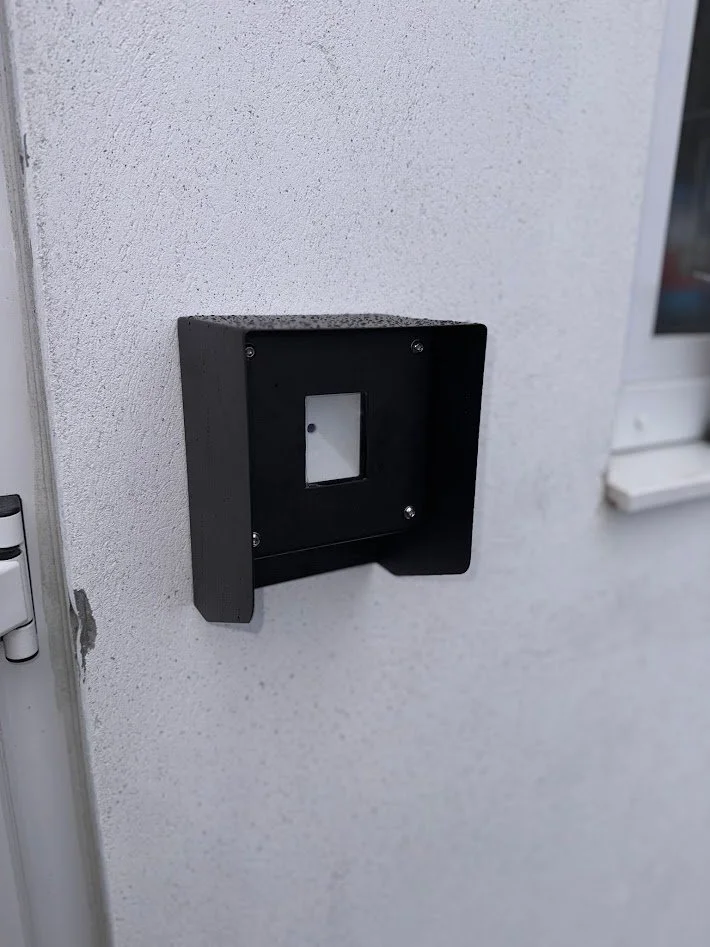

We can supply a transparent rain cover for QR readers suitable for outdoor installation

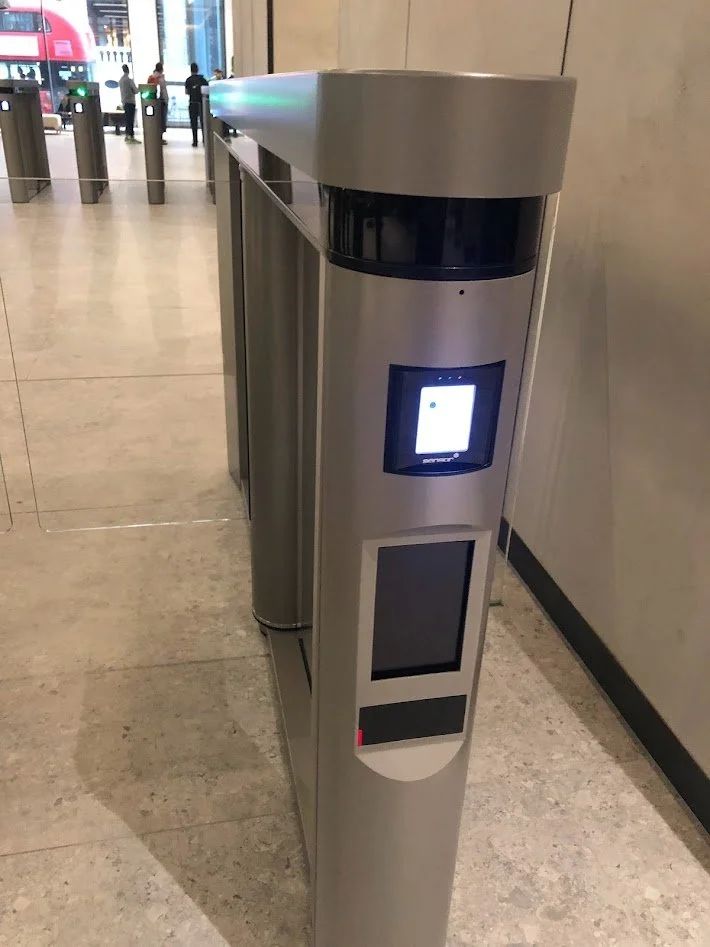

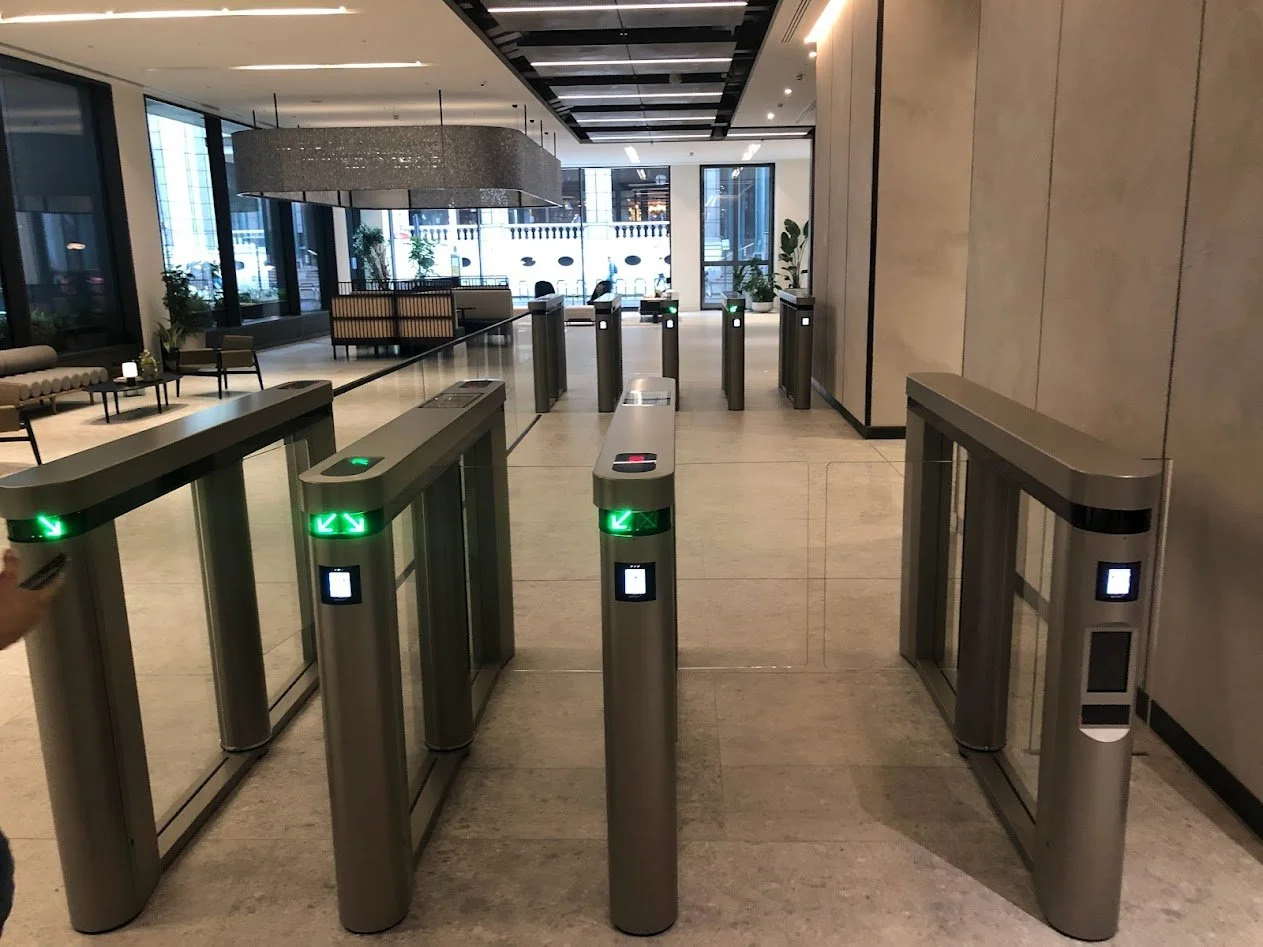

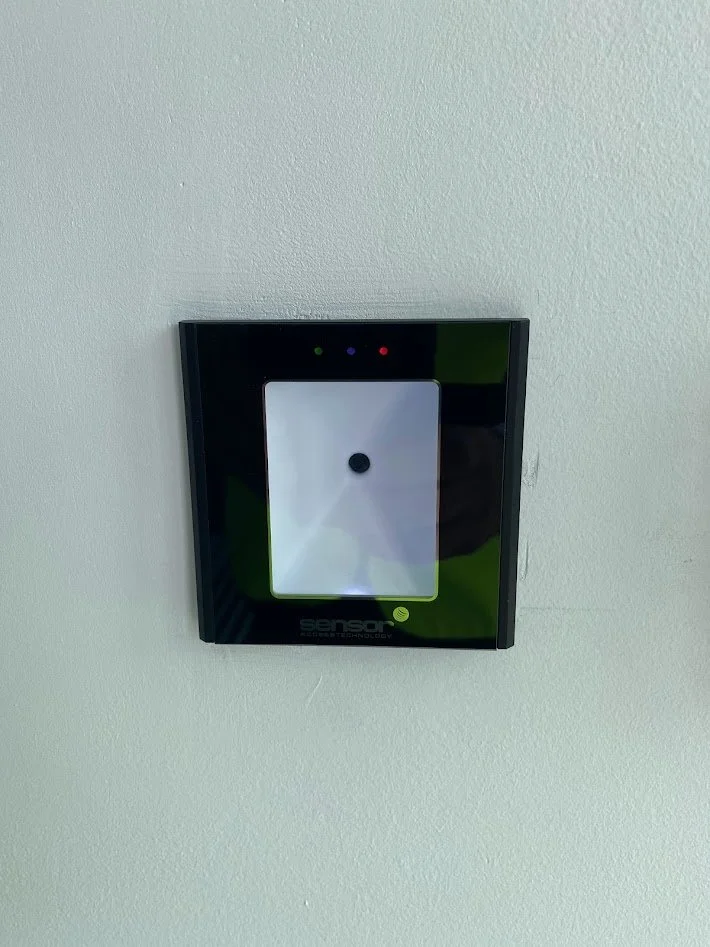

Our QR readers fit a standard UK single-gang back box, so they can be flush mounted into a wall or surface mounted using one of our matching back boxes. Their compact 86 x 86 mm size also makes them easy to build into turnstiles and speed gates. Step-by-step installation guides are available on our support portal..
